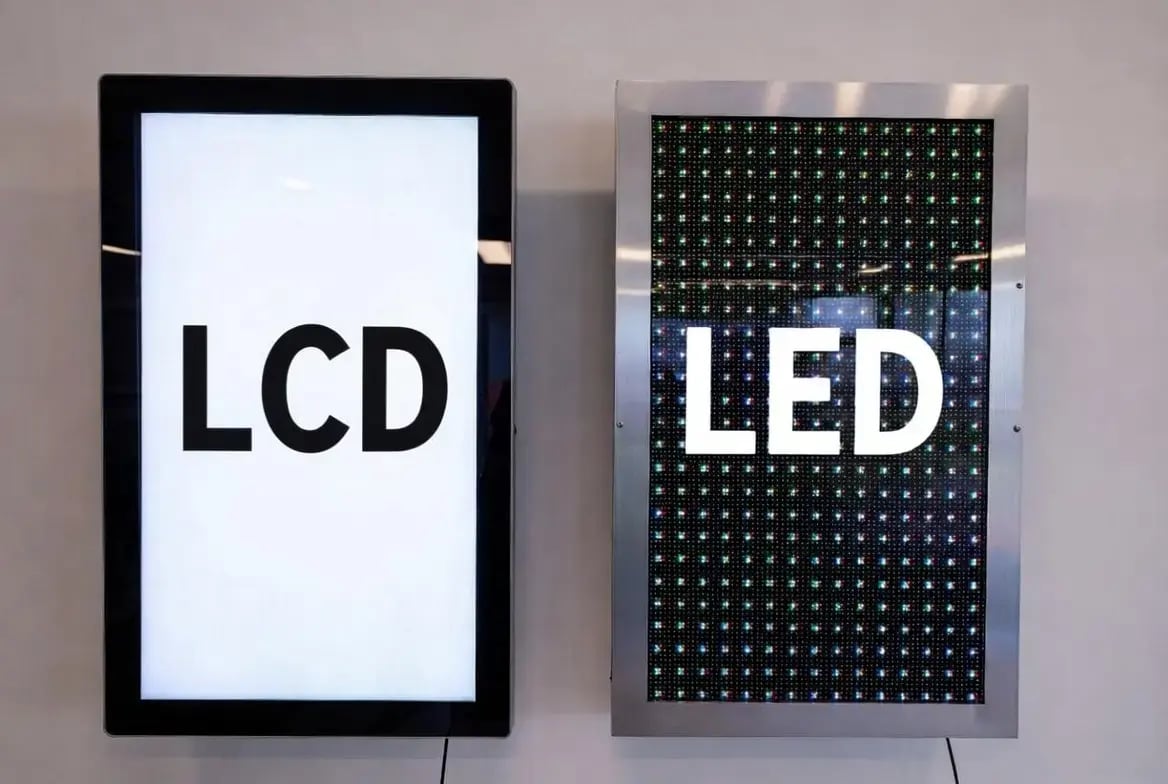

High-Brightness Digital Signage:
LCD vs. LED up to 100″

5,000

Max Nits (LCD)

100K

Hours (LED Life)

40%

LED Energy Savings

IP65+

Outdoor LED Rating

☀️ Brightness Requirements

• Standard indoor: 300–500 nits
• Window-facing: 2,500+ nits mandatory
• Outdoor billboards: 5,000–8,000 nits
• Dual-sided (Samsung OMN-D): 3,000 out / 1,000 in

⚡ Energy Consumption

• LCD: 110–180 kWh/month (24/7)
• LED: 60–90 kWh/month (40% less)
• MicroLED: 30–50% lower than LED
• Annual savings: $1,200–$3,000 per m²

🔧 Maintenance Profile

LCD: Full panel replacement if failure. Cooling fans, filters need periodic service. Backlight degradation over time.

LED: Modular – swap individual modules. Periodic calibration. No glass panel to crack. More field-serviceable.

⚠️ Common Failure Modes

LCD: Backlight aging, driver failures, image retention, thermal blackening under sun.

LED: Diode dimming over years (color drift), power supply/control board failures, water ingress if seals fail.

📺 High-Brightness LCD

• Purchase: $2,500
• Installation: $500
• Electricity (5 yr): $800
• Potential repairs: $500
• Total: ~$4,300

💡 Comparable LED (~60″)

• Purchase: $6,000
• Installation: $1,000
• Electricity (5 yr): $500
• Maintenance: $300
• Total: ~$7,800

High resolution (1080p/4K), fine color detail, low cost per screen. Standard 500-nit LCDs suffice; brighter stores may use 700–1000 nit. LED walls for impact/scale (lobbies, large video walls) where bezel-free look is valued.

Purpose-built 2,500–4,000 nit panels with anti-glare coatings. Dual-sided LCD (Samsung OMN-D) shows content to street AND in-store. Standard indoor TVs won't survive here. LED if window area is very large or irregular.

Close viewing (kiosks, ATMs): LCD in hardened enclosure for sharp text. Far viewing (marquees): LED panels (4-6mm pitch) – simpler weatherproofing, no AC unit. Both require proper IP-rated installation.

LED is the clear winner. Rugged (shock/vibration), 4,500+ nits, runs on 12V vehicle power. IP66 weatherproof, 140° viewing angles. LCD would require complex enclosure with climate controls – not practical for vehicles.

🏭 Vendor Relationships

Authorized reseller relationships with Samsung, LG, NEC/Sharp, Panasonic for LCDs. LED suppliers: Absen, Leyard/Planar. Focus on reliability, 24/7 ratings, minimum 3-year warranty. Premium MicroLED often includes 5-year warranty.

🔧 Warranty Handling

Integrator is first-line support – customer calls integrator, not manufacturer. Integrator handles RMA logistics. LED: spare modules kept for immediate swap. LCD: may need on-site swap or shipping to repair center.

📋 Service Models

• Break-Fix: On-call repair, time & materials
• SLA: Preventive maintenance visits, 24-48hr response, 99% uptime guarantee
• Managed: Remote monitoring, 24/7 support, proactive issue detection

📦 Supply Chain

High-brightness/LED products: 8-12 week lead times. Integrators keep inventory: spare 55″ LCDs for fast deployment, LED spare parts in warehouse. Local stock crucial for quick-turnaround support.

📉 LED Cost Declines

LED prices roughly halving every few years. The gap with LCD is narrowing – from 4× to 2× and falling. By late 2020s, fine-pitch (sub-2mm) LED will challenge tiled LCD video walls in corporate settings. Pitches like 0.9mm/1.2mm becoming mainstream.

🔬 MicroLED on the Horizon

Currently ultra-premium (100″ sets over $100K). Manufacturing breakthroughs (Silicon-based printing) could cut costs drastically. In 5-7 years, MicroLED under 100″ may drop to tens-of-thousands range – game-changing for digital signage.

⚡ Performance Improvements

• LCD: Mini-LED backlights, QLED (quantum dot), 3000+ nit thin form factors
• LED: Common cathode designs (less power), 120Hz+ HDR, black solder masks
• Emerging: Transparent LED/OLED for creative storefront designs

📊 Market Shifts

Rising demand for seamless video walls and energy-efficient signage. LED/MicroLED with 30-50% energy savings align with green trends. TCO calculations becoming bigger factor – clients paying more upfront for LED savings in power and replacements.

High-Demand, Standardized

• High-brightness LCD (43″-75″)
• Dual-sided window displays
• Standard-pitch LED (3-6mm outdoor)
• Interactive table-tents

High-Visibility, Differentiated

• Fine-pitch LED walls (<2mm)
• MicroLED displays
• Dual-faced/curved LED
• Vehicle rooftop LED panels
• Integrated smart kiosks

Emerging Tech / Niche

• Next-gen MicroLED sub-100″
• Transparent OLED
• E-paper storefront posters
• Shelf-edge LED strips
• AR/holographic displays

What's the difference between LCD and LED digital signage?

LCD (Liquid Crystal Display) uses a backlight shining through a liquid crystal panel to create images. Direct-view LED uses individual LED diodes as pixels, with each pixel emitting its own light. LCD offers higher resolution at lower cost for smaller sizes, while LED provides longer lifespan (100K vs 50K hours), better outdoor durability, and modular serviceability.

How bright does a window display need to be?

Window-facing screens require minimum 2,500 nits to remain visible through glass in direct sunlight. Premium high-brightness LCDs reach 4,000-5,000 nits. Dual-sided window displays typically output 3,000 nits on the street-facing side and 1,000 nits indoors. Standard indoor displays (~500 nits) will be invisible in sunlight and should never be used in windows.

Which is more cost-effective over 5 years: LCD or LED?

For small sizes (~55″), LCD is still more cost-effective – 5-year TCO of ~$4,300 vs ~$7,800 for comparable LED. However, for larger installations (100″+) or harsh outdoor environments, LED's longer lifespan, lower energy use (40% savings), and modular repairability often result in lower total cost. LED repairs replace individual modules ($hundreds) while LCD often requires full panel replacement ($thousands).

What pixel pitch do I need for close-viewing LED?

For close viewing (under 10 feet), you need fine-pitch LED: 2mm or smaller to avoid visible "screen door" effect. For medium distances (10-20 feet), 2-4mm pitch works well. For far viewing (20+ feet, outdoor billboards), 4-6mm+ pitch is acceptable and more cost-effective. Rule of thumb: optimal viewing distance (in feet) ≈ pixel pitch (in mm) × 3.

Can I use LED for vehicle-mounted signage?

Yes – LED is the only practical option for vehicle-mounted signage. Rooftop LED panels offer: shock/vibration resistance, 4,500+ nits brightness for daylight visibility, 12V compatibility with vehicle electrical systems, IP66 weatherproofing, 140° viewing angles, and 100K hour lifespan. LCD would require complex enclosures with climate control and presents glass breakage risk from road vibrations.
